D71F4、D371F4對夾式襯四氟蝶閥
|
|
|
|
|
|
主要零件及材料 |
襯四氟蝶閥標準 |
||
|
零件名稱 |
材料 |
設計標準 |
GB12238 |
|
上下閥體 |
鑄鐵、鑄鋼、不銹鋼、襯F4 |
結構長度 |
GB12221 |
|
閥 座 |
F4 |
法蘭標準 |
JB/T79-94 |
|
帶桿碟板 |
全襯（WCB包襯）、半襯（不銹鋼） |
GB9113.1-26 |
|
|
襯 墊 |
硅橡膠 |
檢驗試驗 |
GB/T13927 |
|
渦輪手柄 |
Qt400-15球墨鑄鐵、鋁合金 |
驅動方式 |
渦輪、手動、電動、氣動 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

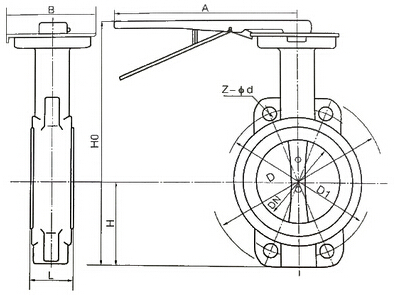

主要外形連接尺寸(PN1.0MPa) |
||||||||||||||
|
型號 |
DN |
inch |
外形尺寸 |
參考值 |
||||||||||
|
L |
H2 |
H1 |
D |
D1 |
D2 |
F |
B |
Z-Φd |
Do |
H |
kg重量 |
|||
|
D71F4-10C |
40 |
1 1/2 |
33 |
143 |
85 |
150 |
110 |
85 |
3 |
19 |
4-18 |
150 |
140 |
3.5 |
|
D71F4-10C |
50 |
2 |
43 |
143 |
85 |
165 |
125 |
100 |
3 |
21 |
4-18 |
150 |
140 |
4.5 |
|
D71F4-10C |
65 |
2 1/2 |
46 |
157 |
93 |
185 |
145 |
120 |
3 |
21 |
4-18 |
150 |
150 |
6.5 |
|
D71F4-10C |
80 |
3 |
46 |
178 |
100 |
200 |
160 |
135 |
3 |
21 |
8-18 |
150 |
165 |
9 |
|
D71F4-10C |
100 |
4 |
52 |
185 |
110 |
220 |
180 |
155 |
3 |
23 |
8-18 |
200 |
180 |
11 |
|
D71F4-10C |
125 |
5 |
56 |
206 |
120 |
250 |
210 |
185 |
3 |
23 |
8-18 |
200 |
200 |
19 |
|
D71F4-10C |
150 |
6 |
56 |
225 |
160 |
285 |
240 |
210 |
3 |
25 |
8-23 |
280 |
220 |
28 |
|
D71F4-10C |
200 |
8 |
60 |
275 |
245 |
340 |
295 |
265 |
3 |
25 |
8-23 |
280 |
270 |
55 |
|
D71F4-10C |
250 |
10 |
68 |
326 |
260 |
395 |
350 |
320 |
4 |
28 |
12-23 |
200 |
320 |
71 |
|
D71F4-10C |
300 |
12 |
78 |
333 |
300 |
445 |
400 |
370 |
4 |
28 |
12-23 |
240 |
330 |
90 |
|
D71F4-10C |
350 |
14 |
78 |
393 |
320 |
505 |
460 |
430 |
4 |
28 |
16-23 |
240 |
385 |
122 |
|
D71F4-10C |
400 |
16 |
102 |
438 |
330 |
565 |
515 |
480 |
4 |
28 |
16-26 |
280 |
430 |
140 |
|
D71F4-10C |
450 |
18 |
114 |
488 |
380 |
615 |
565 |
530 |
4 |
30 |
20-26 |
280 |
480 |
160 |
|
D71F4-10C |
500 |
20 |
127 |
540 |
390 |
670 |
620 |
580 |
4 |
30 |
20-26 |
320 |
540 |
200 |
|
D71F4-10C |
600 |
24 |
154 |
615 |
450 |
780 |
725 |
680 |
5 |
34 |
20-30 |
320 |
610 |
270 |
|
D71F4-10C |
700 |
28 |
165 |
660 |
480 |
895 |
840 |
795 |
5 |
36 |
24-30 |
360 |
650 |
320 |
|
D71F4-10C |
800 |
32 |
190 |
720 |
580 |
1015 |
950 |
900 |
5 |
38 |
24-33 |
360 |
710 |
390 |
|
D71F4-10C |
900 |
36 |
203 |
785 |
625 |
1115 |
1050 |
1000 |
5 |
40 |
28-33 |
380 |
780 |
455 |
|
D71F4-10C |
1000 |
40 |
216 |
900 |
660 |
1230 |
1160 |
1115 |
5 |
42 |
28-36 |
400 |
900 |
690 |
|
D71F4-10C |
1200 |
48 |
254 |
1070 |
780 |
1455 |
1380 |
1330 |
5 |
44 |
32-39 |
400 |
1050 |
830 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
主要外形連接尺寸(PN1.6MPa) |
||||||||||||||
|
型號 |
DN |
G |
外形尺寸 |
參考值 |
||||||||||
|
L |
H2 |
H1 |
D |
D1 |
D2 |
F |
B |
Z-Φd |
Do |
H |
kg重量 |
|||
|
D71F4-10C |
40 |
1 1/2 |
33 |
143 |
85 |
150 |
110 |
85 |
3 |
19 |
4-18 |
150 |
140 |
4 |
|
D71F4-10C |
50 |
2 |
43 |
143 |
85 |
165 |
125 |
100 |
3 |
21 |
4-18 |
150 |
140 |
5 |
|
D71F4-10C |
65 |
2 1/2 |
46 |
157 |
93 |
185 |
145 |
120 |
3 |
21 |
4-18 |
150 |
150 |
8 |
|
D71F4-10C |
80 |
3 |
46 |
178 |
100 |
200 |
160 |
135 |
3 |
22 |
8-18 |
150 |
165 |
12 |
|
D71F4-10C |
100 |
4 |
52 |
185 |
110 |
220 |
180 |
155 |
3 |
23 |
8-18 |
200 |
180 |
14 |
|
D71F4-10C |
125 |
5 |
56 |
206 |
120 |
250 |
210 |
185 |
3 |
23 |
8-18 |
200 |
200 |
22 |
|
D71F4-10C |
150 |
6 |
56 |
225 |
160 |
285 |
240 |
210 |
3 |
25 |
8-23 |
280 |
220 |
30 |
|
D71F4-10C |
200 |
8 |
60 |
275 |
245 |
340 |
295 |
265 |
3 |
25 |
12-27 |
280 |
270 |
65 |
|
D71F4-10C |
250 |
10 |
68 |
326 |
260 |
405 |
355 |
320 |
4 |
28 |
12-27 |
200 |
320 |
80 |
|
D71F4-10C |
300 |
12 |
78 |
333 |
300 |
460 |
410 |
370 |
4 |
30 |
12-27 |
240 |
330 |
95 |
|
D71F4-10C |
350 |
14 |
78 |
393 |
320 |
520 |
470 |
430 |
4 |
32 |
16-27 |
240 |
385 |
125 |
|
D71F4-10C |
400 |
16 |
102 |
438 |
330 |
580 |
525 |
480 |
4 |
34 |
16-30 |
280 |
430 |
155 |
|
D71F4-10C |
450 |
18 |
114 |
488 |
380 |
640 |
585 |
550 |
4 |
42 |
20-30 |
280 |
480 |
175 |
|
D71F4-10C |
500 |
20 |
127 |
540 |
390 |
715 |
650 |
610 |
5 |
42 |
20-33 |
320 |
540 |
230 |
|
D71F4-10C |
600 |
24 |
154 |
615 |
450 |
840 |
770 |
720 |
5 |
48 |
20-36 |
320 |
610 |
300 |
|
D71F4-10C |
700 |
28 |
165 |
660 |
480 |
910 |
840 |
759 |
5 |
48 |
24-36 |
360 |
650 |
335 |
|
D71F4-10C |
800 |
32 |
190 |
720 |
580 |
1025 |
950 |
900 |
5 |
48 |
24-39 |
360 |
740 |
425 |
|
D71F4-10C |
900 |
36 |
203 |
785 |
625 |
1125 |
1050 |
1000 |
5 |
50 |
28-39 |
380 |
780 |
500 |
|
D71F4-10C |
1000 |
40 |
216 |
900 |
660 |
1255 |
1170 |
1110 |
5 |
50 |
28-42 |
400 |
900 |
715 |
|
D71F4-10C |
1200 |
48 |
254 |
1070 |
780 |
1485 |
1390 |
1330 |
5 |
50 |
32-48 |
400 |
1050 |
860 |
|
備注： |
|
|
機標是（JB78）時為4孔，表中尺寸為GB/9113標準、訂貨說明。 |
|
|
DN200以Do尺寸為渦輪手輪尺寸，DN200以下Do為手柄尺寸。 |
|
